Products
Foils and Membranes
9 products in this range
-

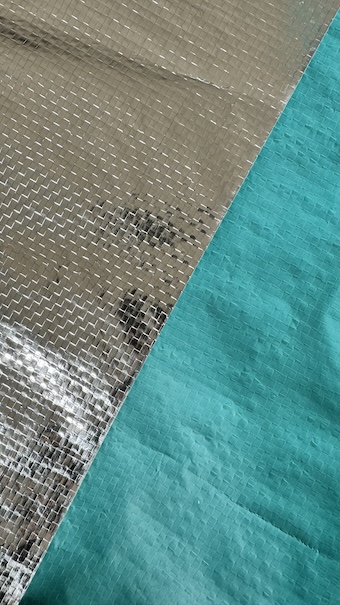

ShieldFlex HD Sarking
Heavy Duty reflective sarking and wall wrap in one product.
-

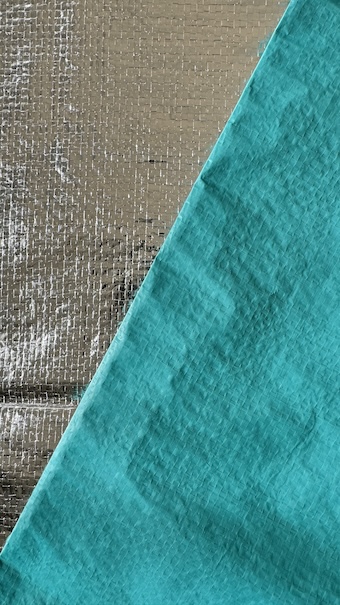

ShieldFlex MD Breather Wall Wrap
The breather version of the Medium Duty wall wrap.
-

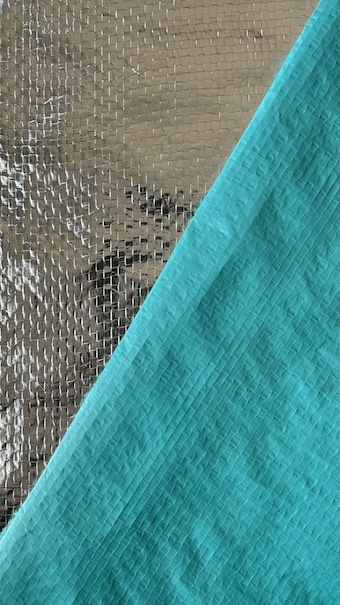

ShieldFlex MD Wall Wrap
The traditional Medium Duty reflective wall wrap.
-

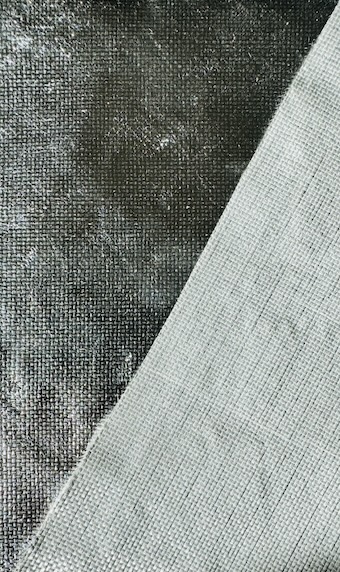

ShieldFlex XHD FR Sarking
Extra Heavy Duty sarking for non-combustible construction.
-

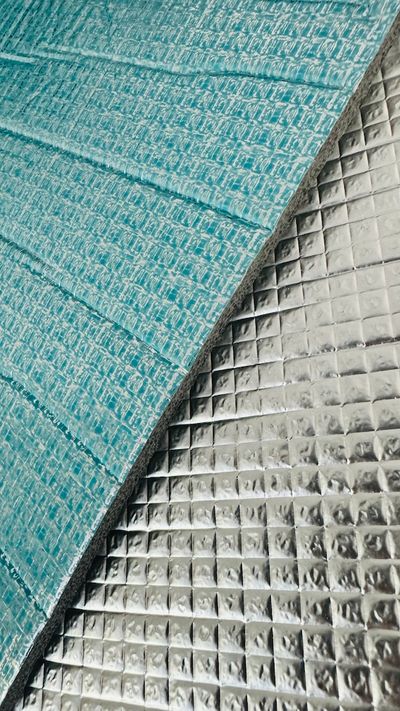

ThermalFlex 4
Reflective insulation, vapour barrier and radiant barrier in one 4 mm sheet.
-

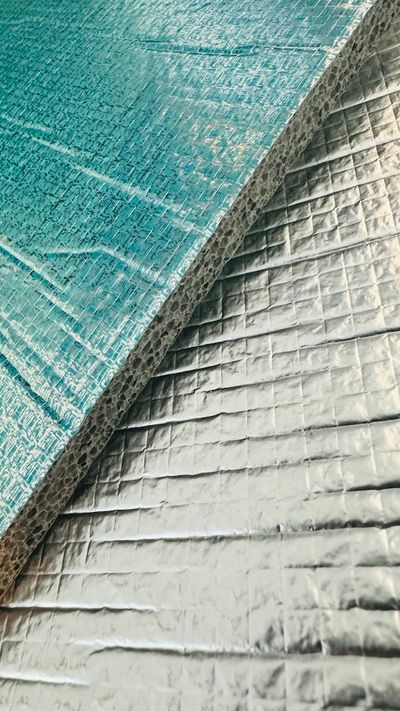

ThermalFlex 8
The thicker core, for where a thermal break is required.
-
ThermalFlex Cavity
Double-sided reflective insulation built for wall cavities.
-

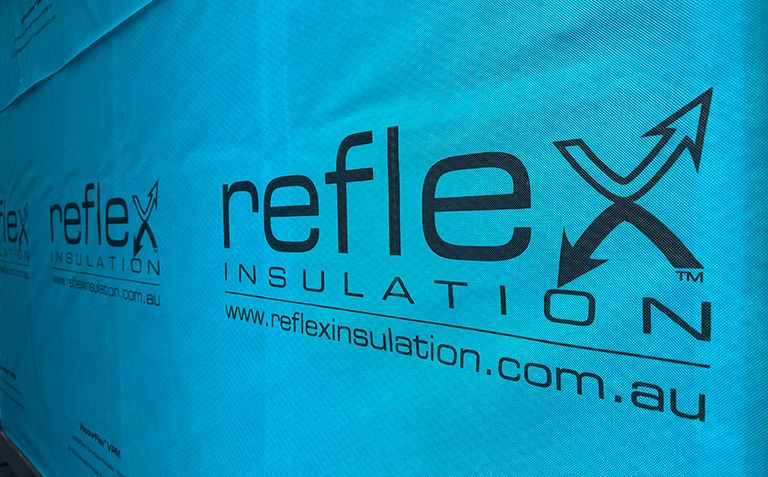

VapourFlex CW
Class 4 vapour permeable, and classified as an air barrier.
-
VapourFlex VPM
Class 4 vapour permeable wall wrap for Perth walls.
Our Foils and Membranes range
ThermalFlex 4
ThermalFlex 8
ThermalFlex Cavity
VapourFlex VPM
VapourFlex CW
ShieldFlex MD Wall Wrap
ShieldFlex MD Breather Wall Wrap
ShieldFlex HD Sarking
ShieldFlex XHD FR Sarking
Choosing a membrane for a Perth wall or roof
"Sarking", "wall wrap" and "vapour permeable membrane" get used interchangeably on site, but they do different jobs, and the National Construction Code treats them differently. Perth sits in ABCB Climate Zone 5 , which is the number that decides which of them you are allowed to use where.
The three jobs a membrane does
- Radiant barrier. A reflective foil face earns extra R-value , but only when it faces an air cavity. Foil pressed against cladding does nothing thermally.
- Weather barrier. Keeps wind-driven rain, dust and air out of the wall or roof space. This is the water and air control classification on the data sheet.
- Vapour control. Either stops water vapour crossing the wall (a Class 1 or 2 vapour barrier) or lets it diffuse out (a Class 3 or 4 vapour permeable membrane). Getting this the wrong way round is what causes condensation inside a wall.
What that means in Perth
| If you are... | Reach for |
|---|---|
| Wrapping a wall in Perth (Climate Zone 5) | VapourFlex VPM , Class 4 vapour permeable and a water barrier |
| Wrapping a wall and chasing an airtight envelope | VapourFlex CW , the same Class 4 permeability, plus an air barrier classification |
| Wrapping a wall and you want a reflective cavity | ShieldFlex MD Wall Wrap , Medium Duty, Class 2 vapour barrier |
| Wrapping a wall that needs to breathe | ShieldFlex MD Breather Wall Wrap , the perforated Class 3 permeable version |
| Sarking a tile or metal roof | ShieldFlex HD Sarking , Heavy Duty, roof sarking and wall wrap in one |
| Building where non-combustible construction is required | ShieldFlex XHD FR Sarking , not deemed combustible, Extra Heavy Duty |
| Breaking a thermal bridge in steel framing | ThermalFlex 8 , the thicker foam core the NCC thermal break calls for |
| Lining a shed roof or wall | ThermalFlex 4 , R0.11, low-glare foil face, 1500 mm wide |
| Insulating inside a wall cavity | ThermalFlex Cavity , reflective on both faces, fibre free |
Scroll the table sideways to see every column.
One warning worth repeating
A reflective Heavy Duty sarking is rated as a wall wrap only in Climate Zone 1. It is still the right product for a Perth roof . If you are wrapping a Perth wall, use a vapour permeable membrane instead , every product page in this range carries its full AS/NZS classification table so you can check before you order.
Not sure which one the specification calls for? Send us the detail and we will nominate a membrane that complies.
